Hardware

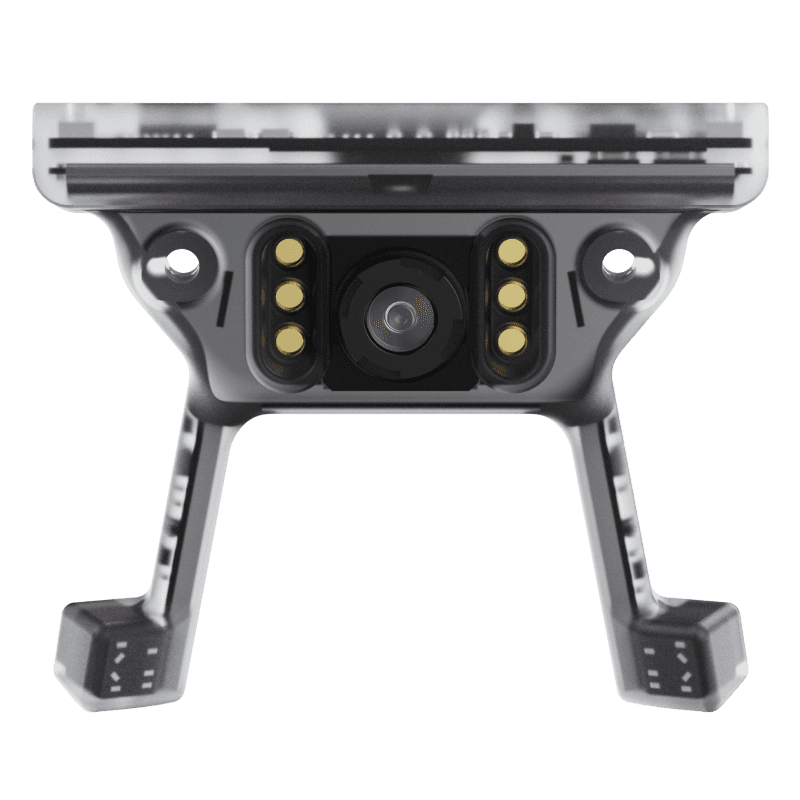

The Neon module is all the eye tracking hardware you need in a small package. High speed eye cameras, wide angle scene camera, stereo microphones, and IMU all encased in water resistant silicone.
Specifications
Scene Camera FOV
1600 x 1200 @30 Hz
H: 103°, V: 77°
Diagonal FOV 128°
Sensor size
2 x IR eye cameras
192 x 192 @200 Hz
Connector
USB 2.0
IMU
Accelerator, Magnetometer, Gyroscope
Microphone
Dual microphones
Frame
Multiple frames available.

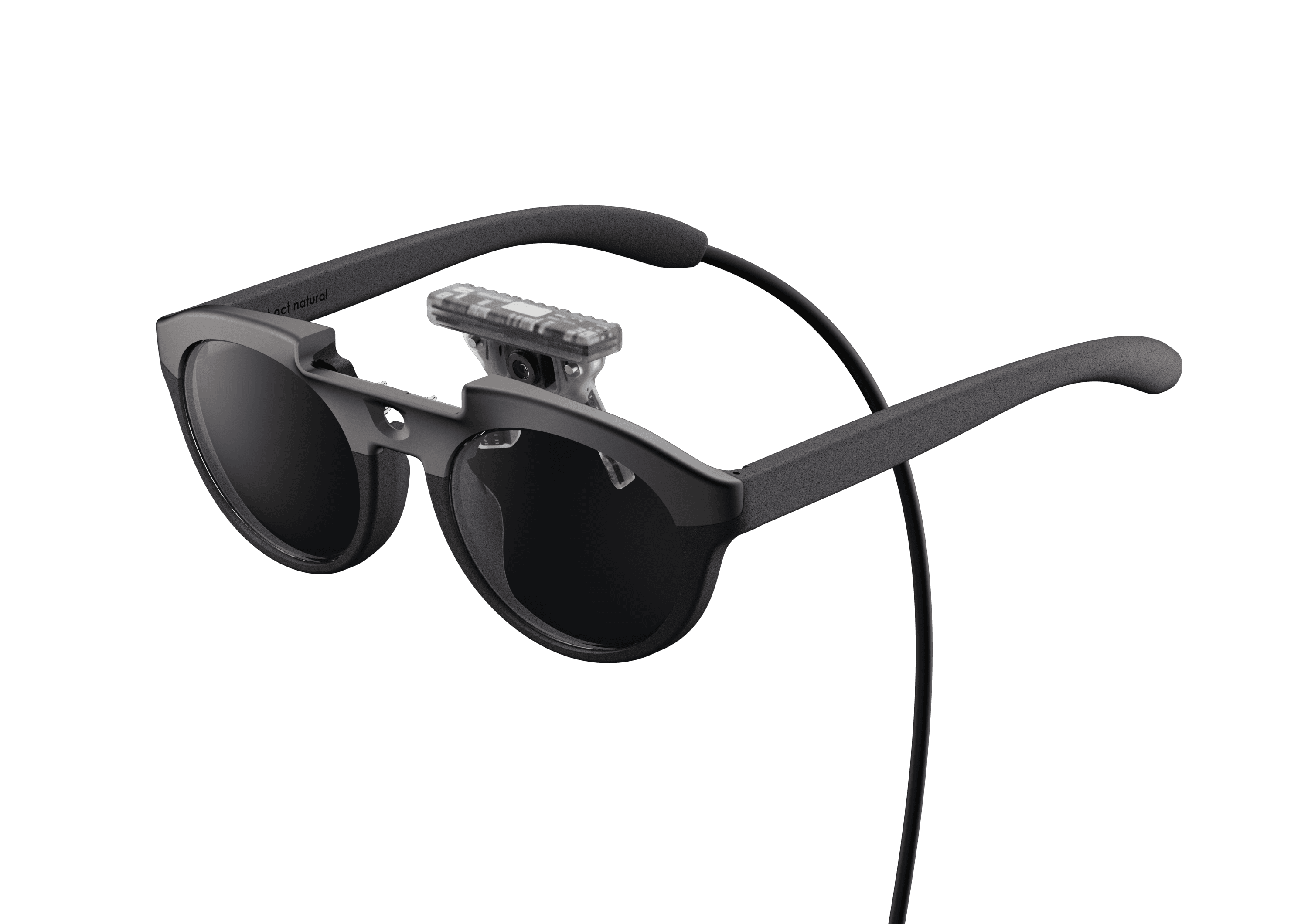

Neon is all the eye tracking hardware you need in a small package. High speed eye cameras, wide angle scene camera, stereo microphones, and IMU all encased in water resistant silicone. The modular design enables a wide variety of frame shapes, sizes, and styles specific to your research needs. Prototypers and tinkerers, you can even integrate the module into your own custom frames.

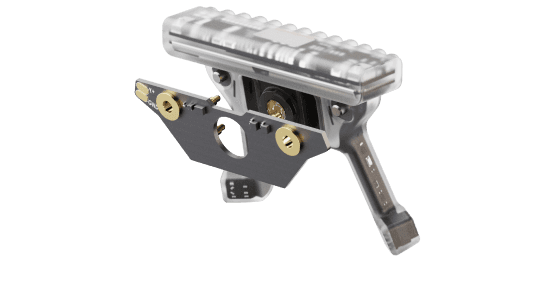

The Neon module’s form factor makes it easy to integrate into all kinds of wearables and custom hardware. The interface geometry is open so that you can integrate Neon into your own prototypes. The required hardware interfaces are also open so you can read out the raw sensor data yourself.
