Technical specifications
Performance Evaluation
Performance Evaluation
Performance Evaluation
Eye Tracking Technology
Eye Tracking Technology
Eye Tracking Technology
Eye Tracking Mode
Binocular, monocular left and right
Eye Tracking Mode
Binocular, monocular left and right
Eye Tracking Mode
Binocular, monocular left and right
Calibration
Calibration-free
Calibration
Calibration-free
Calibration
Calibration-free
Slippage Compensation
Slippage invariant. Deep learning powered.
Slippage Compensation
Slippage invariant. Deep learning powered.
Slippage Compensation
Slippage invariant. Deep learning powered.
Accuracy
1.8 deg uncalibrated
1.3 deg with offset correction
Accuracy
1.8 deg uncalibrated
1.3 deg with offset correction
Accuracy
1.8 deg uncalibrated
1.3 deg with offset correction
Eye Tracking FOV
100° x 80° covering the full human FOV
Eye Tracking FOV
100° x 80° covering the full human FOV
Eye Tracking FOV
100° x 80° covering the full human FOV
Real-time Data
2D gaze points in scene camera coordinates at 200 Hz
Full head pose, accelerometer and gyro data at 110 Hz
IR eye video showing fused eye regions at 200 Hz
RGB scene video at 30 Hz
Pupillometry data and eye state at 200 Hz. Real-time data available in the Companion app.
Eye position, eye orientation, pupil diameter
Real-time Data
2D gaze points in scene camera coordinates at 200 Hz
Full head pose, accelerometer and gyro data at 110 Hz
IR eye video showing fused eye regions at 200 Hz
RGB scene video at 30 Hz
Pupillometry data and eye state at 200 Hz. Real-time data available in the Companion app.
Eye position, eye orientation, pupil diameter
Real-time Data
2D gaze points in scene camera coordinates at 200 Hz
Full head pose, accelerometer and gyro data at 110 Hz
IR eye video showing fused eye regions at 200 Hz
RGB scene video at 30 Hz
Pupillometry data and eye state at 200 Hz. Real-time data available in the Companion app.
Eye position, eye orientation, pupil diameter
Post-hoc Data
Fixation data: White paper
Blink data: White paper
Post-hoc Data
Fixation data: White paper
Blink data: White paper
Post-hoc Data
Fixation data: White paper
Blink data: White paper
Sample Recordings
Sample Recordings
Sample Recordings
Power Consumption
<15 mW for the sensor system
Power Consumption
<15 mW for the sensor system
Power Consumption
<15 mW for the sensor system
Latency
<10 ms (photon to output)
Latency
<10 ms (photon to output)
Latency
<10 ms (photon to output)
Scene Camera
1600 x 1200 @30 Hz
H: 103°, V: 77°
diagonal FOV 128º
Scene Camera
1600 x 1200 @30 Hz
H: 103°, V: 77°
diagonal FOV 128º
Scene Camera
1600 x 1200 @30 Hz
H: 103°, V: 77°
diagonal FOV 128º
Eye Cameras
2 x IR eye cameras
192 x 192 @200 Hz
Eye Cameras
2 x IR eye cameras
192 x 192 @200 Hz
Eye Cameras
2 x IR eye cameras
192 x 192 @200 Hz
IMU
Accelerator, Magnetometer, Gyroscope
IMU
Accelerator, Magnetometer, Gyroscope
IMU
Accelerator, Magnetometer, Gyroscope
Microphone
Dual microphones
Microphone
Dual microphones
Microphone
Dual microphones
Connector
USB 2.0
Connector
USB 2.0
Connector
USB 2.0
Cable
USB-C
Cable
USB-C
Cable
USB-C
Dimensions
H: 35 mm / W: 40 mm / D: 10 mm
Dimensions
H: 35 mm / W: 40 mm / D: 10 mm
Dimensions
H: 35 mm / W: 40 mm / D: 10 mm
Weight
7.3 g
Weight
7.3 g
Weight
7.3 g
Computing Device
Mobile computing device: Motorola Edge 40 Pro
Computing Device
Mobile computing device: Motorola Edge 40 Pro
Computing Device
Mobile computing device: Motorola Edge 40 Pro
Battery Recording Time
Up to 4.5 hours
25+ hours of recording storage
Battery Recording Time
Up to 4.5 hours
25+ hours of recording storage
Battery Recording Time
Up to 4.5 hours
25+ hours of recording storage
Software
Real-time: Neon Companion App
Post-hoc: Pupil Cloud
Software
Real-time: Neon Companion App
Post-hoc: Pupil Cloud
Software
Real-time: Neon Companion App
Post-hoc: Pupil Cloud
Frame
Multiple frames available.
Frame
Multiple frames available.
Frame
Multiple frames available.

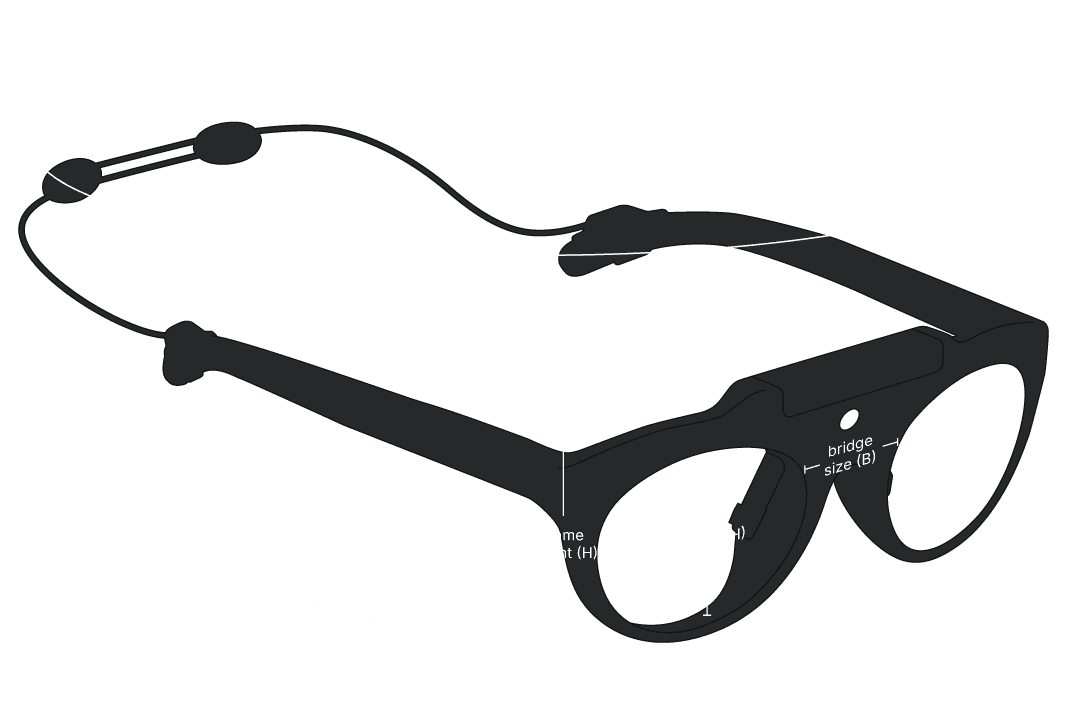

Frame specifications
Frame
Frame Properties
Lens Properties
Notes

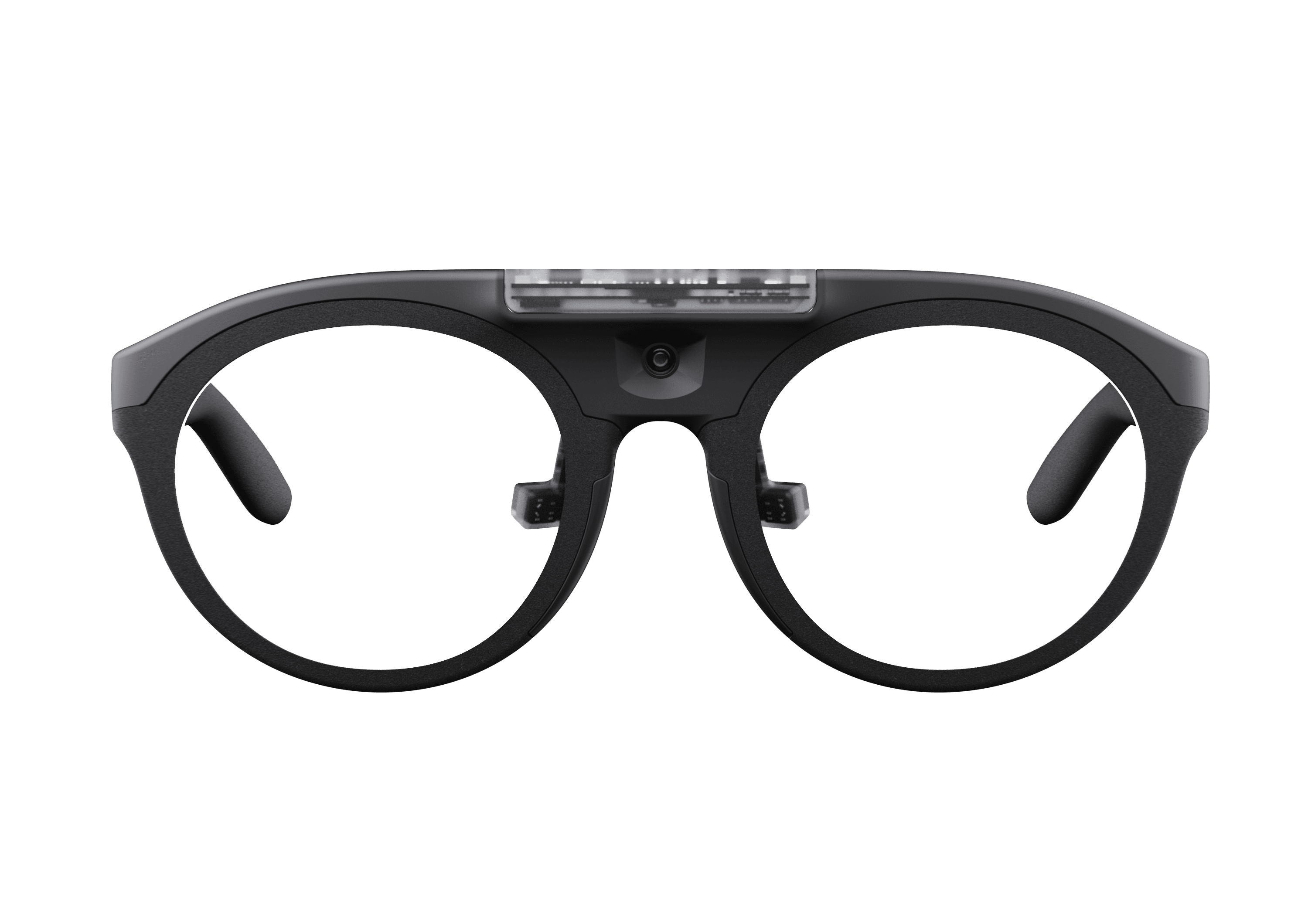

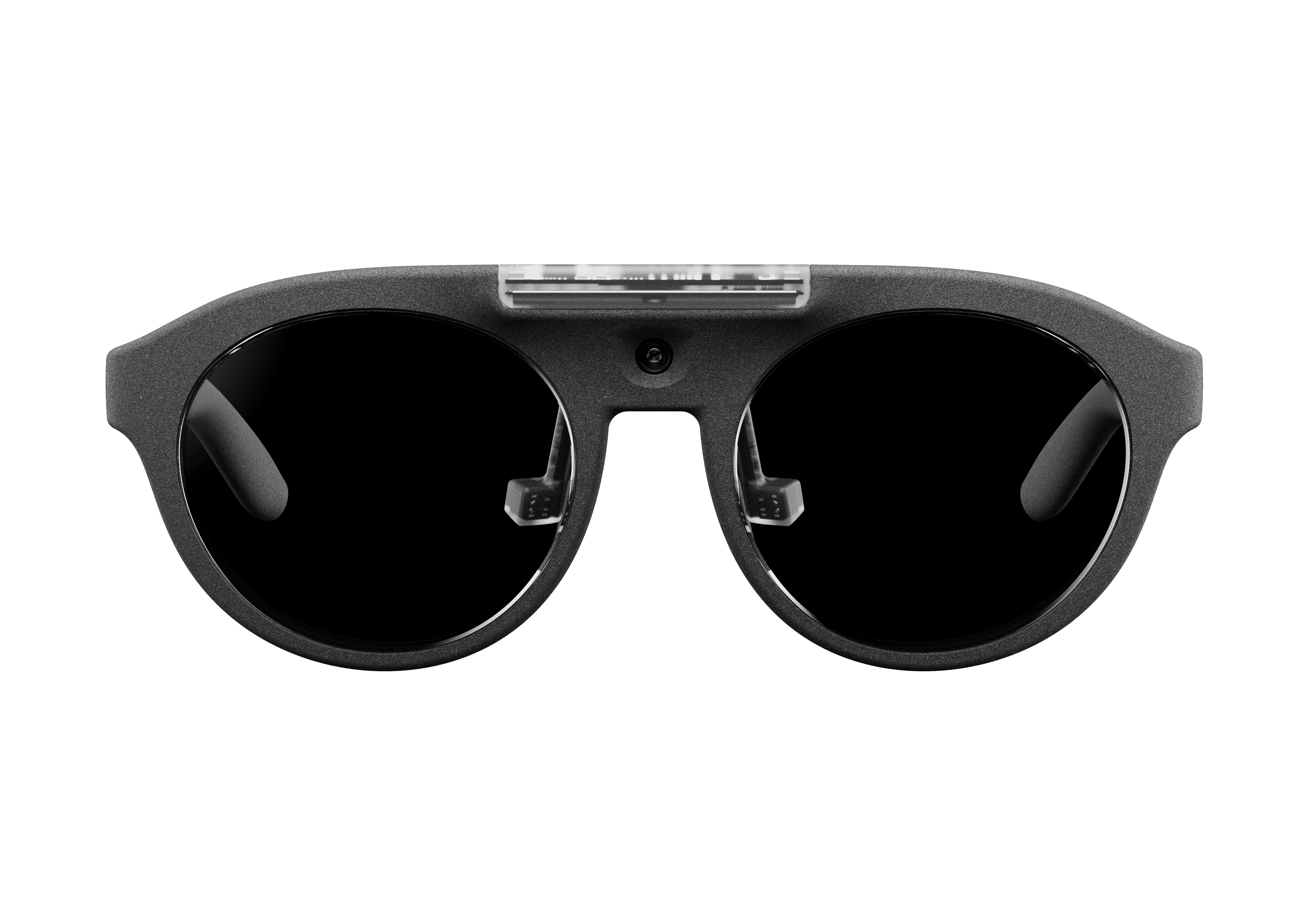

Just act natural
Dimensions
H52 x W143 x D149 x B21 mm
Weight
50 g (including Neon module)
Material
PA12 Nylon, CNC machined anodized aluminum
Dimensions
LH44 x LW51 mm
Material
Plano CR-39 Anti-Scratch UV filter, Anti-Reflective, Dust and water repelling coating
Just act natural
Frame Properties
Dimensions
H52 x W143 x D149 x B21 mm
Weight
50 g (including Neon module)
Material
PA12 Nylon, CNC machined anodized aluminum
Dimensions
LH44 x LW51 mm
Lens Properties
Material
Plano CR-39 Anti-Scratch UV filter, Anti-Reflective, Dust and water repelling coating
Just act natural
Dimensions
H52 x W143 x D149 x B21 mm
Weight
50 g (including Neon module)
Material
PA12 Nylon, CNC machined anodized aluminum
Dimensions
LH44 x LW51 mm
Material
Plano CR-39 Anti-Scratch UV filter, Anti-Reflective, Dust and water repelling coating

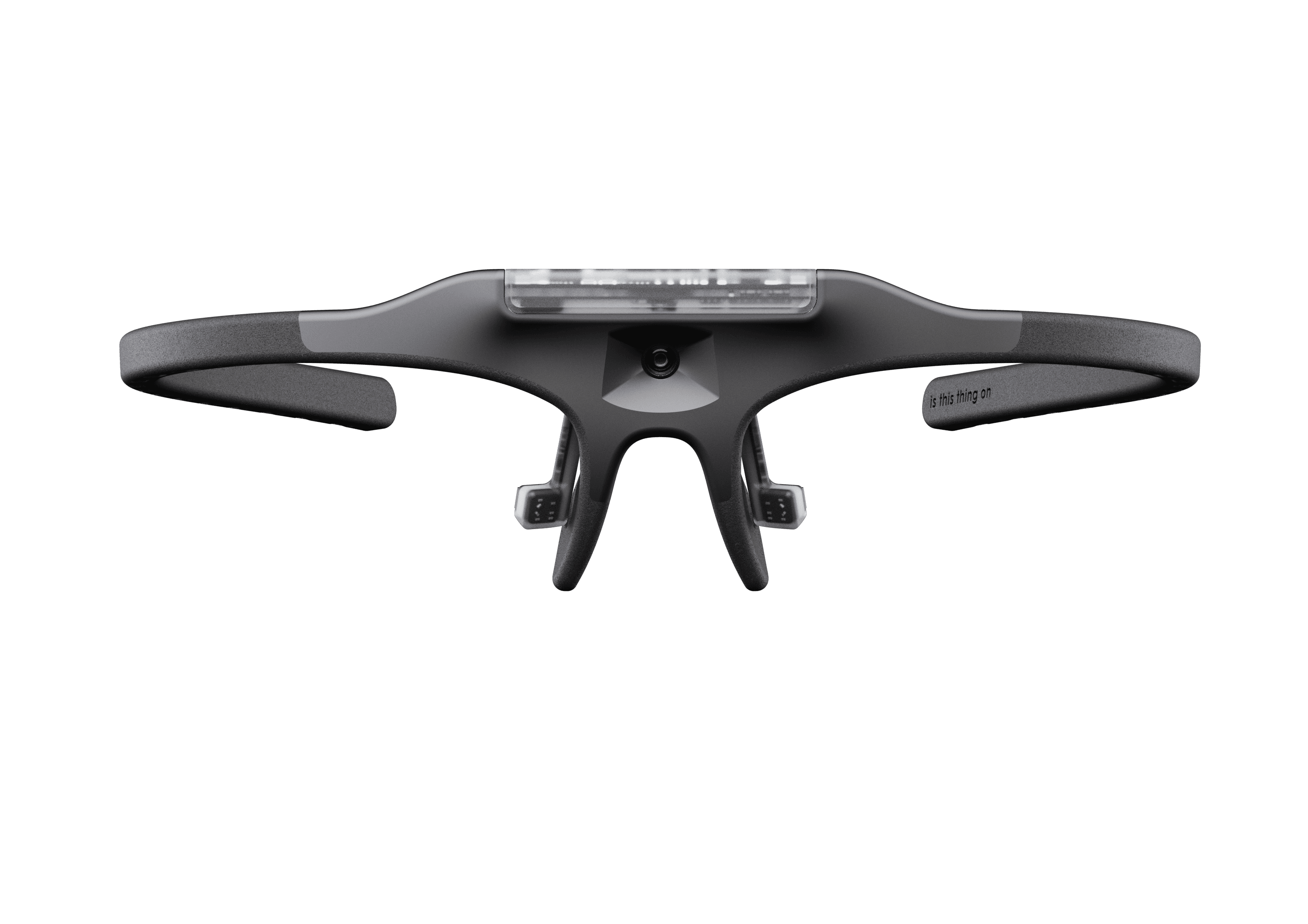

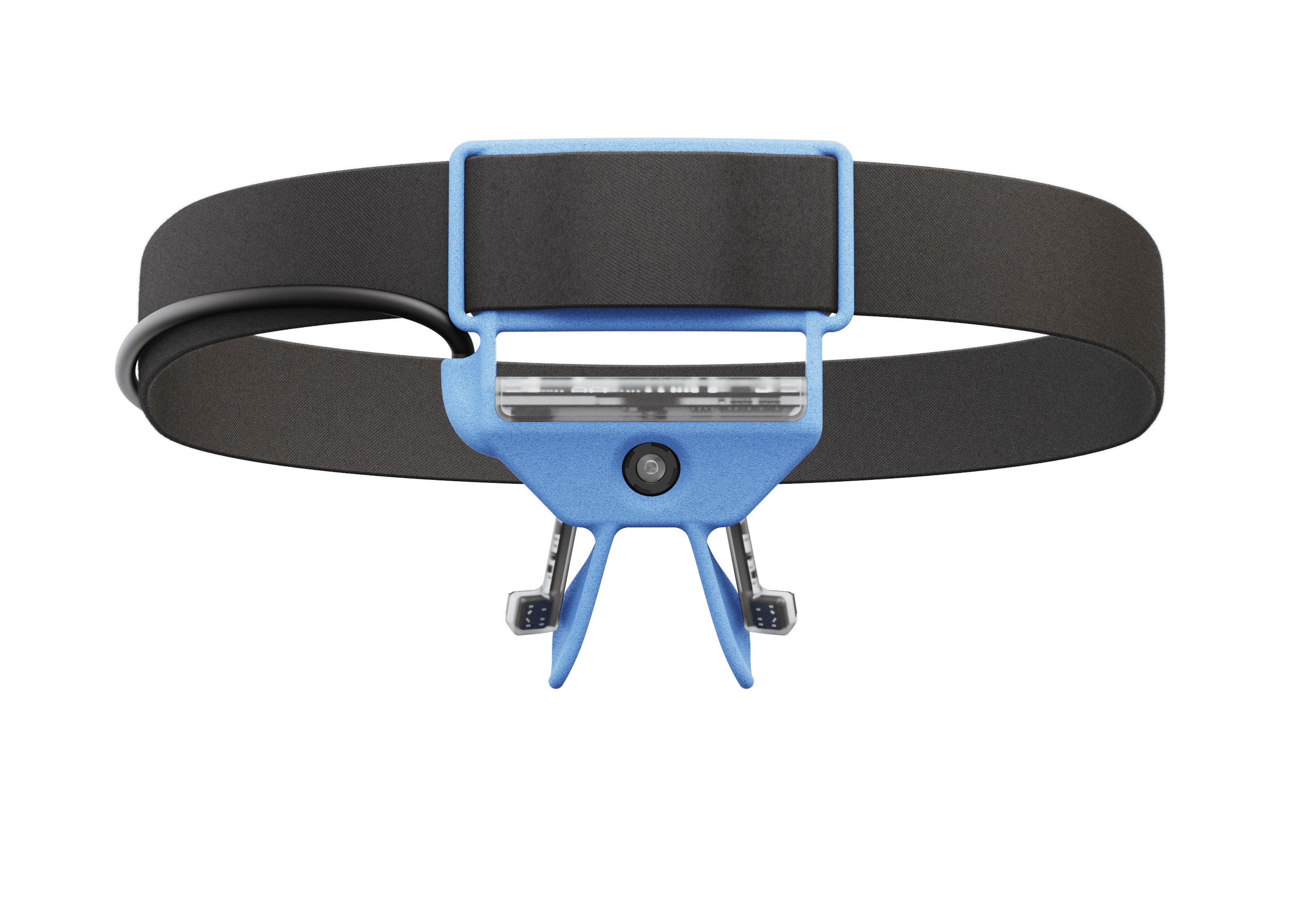

Is this thing on?
Dimensions
H46.5 x W152 x D148 x B21 mm / Max. circumference: 760 mm
Weight
35 g (including Neon module)
Material
PA12 Nylon, CNC machined anodized aluminum
N/A
Is this thing on?
Frame Properties
Dimensions
H46.5 x W152 x D148 x B21 mm / Max. circumference: 760 mm
Weight
35 g (including Neon module)
Material
PA12 Nylon, CNC machined anodized aluminum
Is this thing on?
Dimensions
H46.5 x W152 x D148 x B21 mm / Max. circumference: 760 mm
Weight
35 g (including Neon module)
Material
PA12 Nylon, CNC machined anodized aluminum
N/A

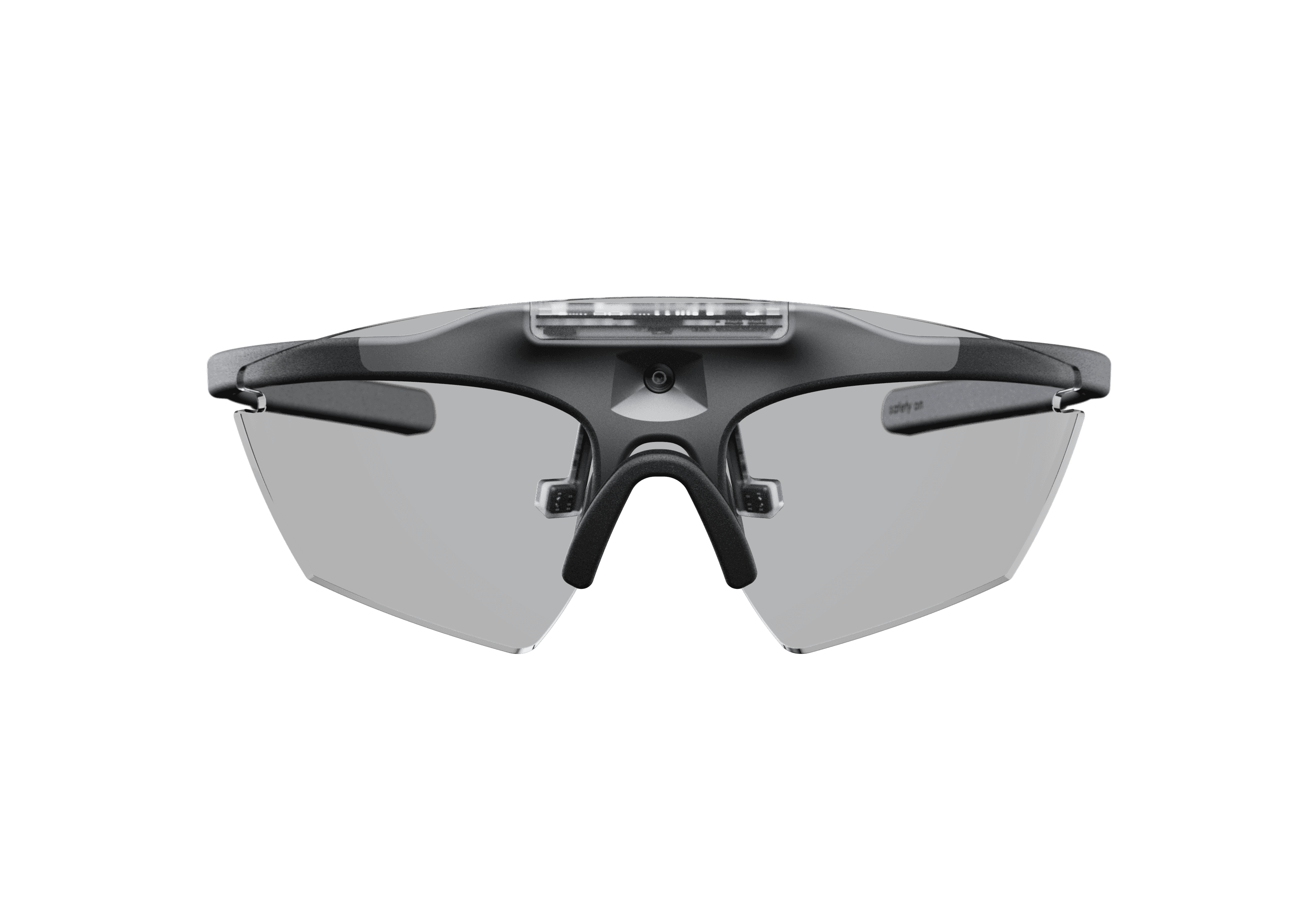

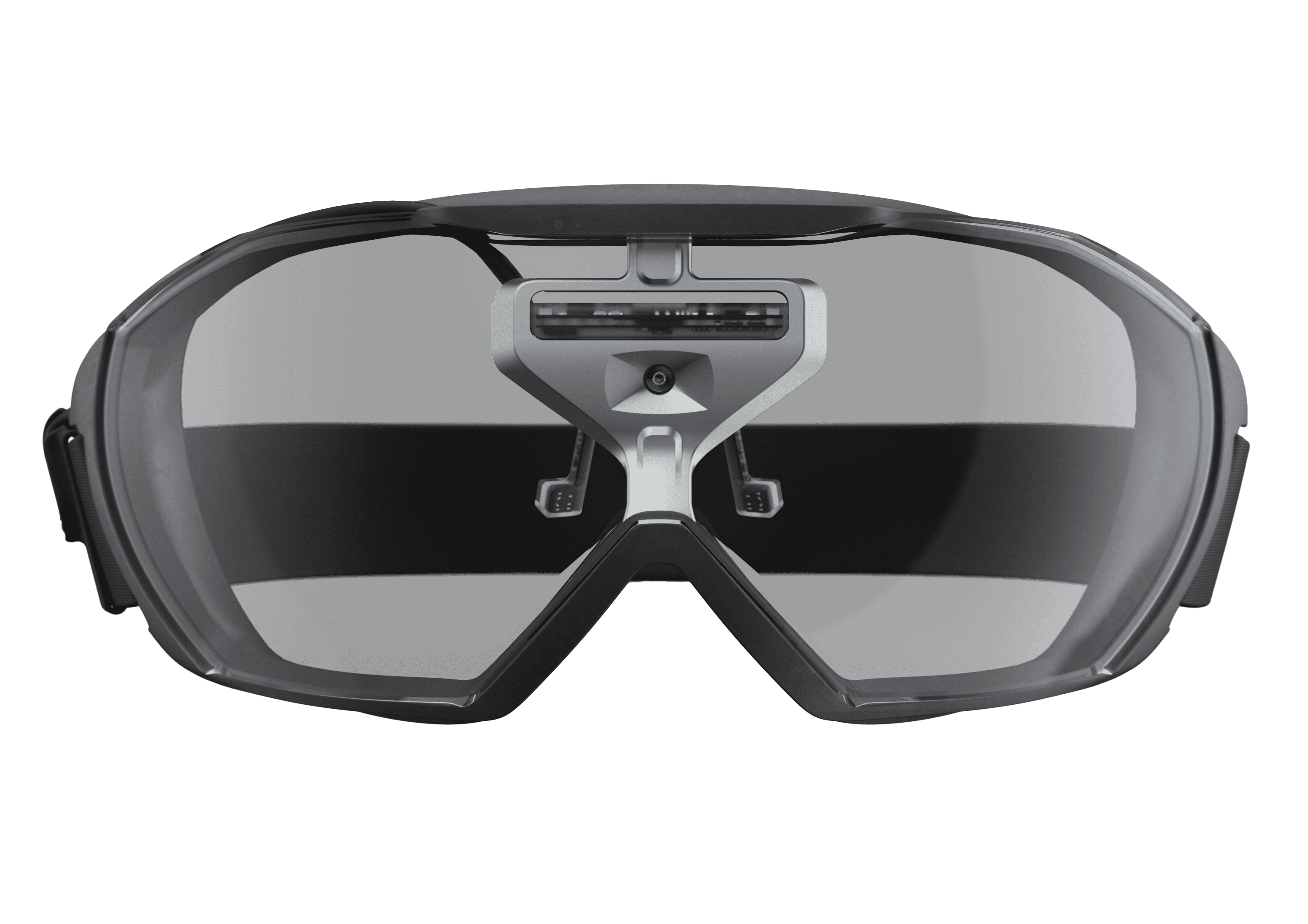

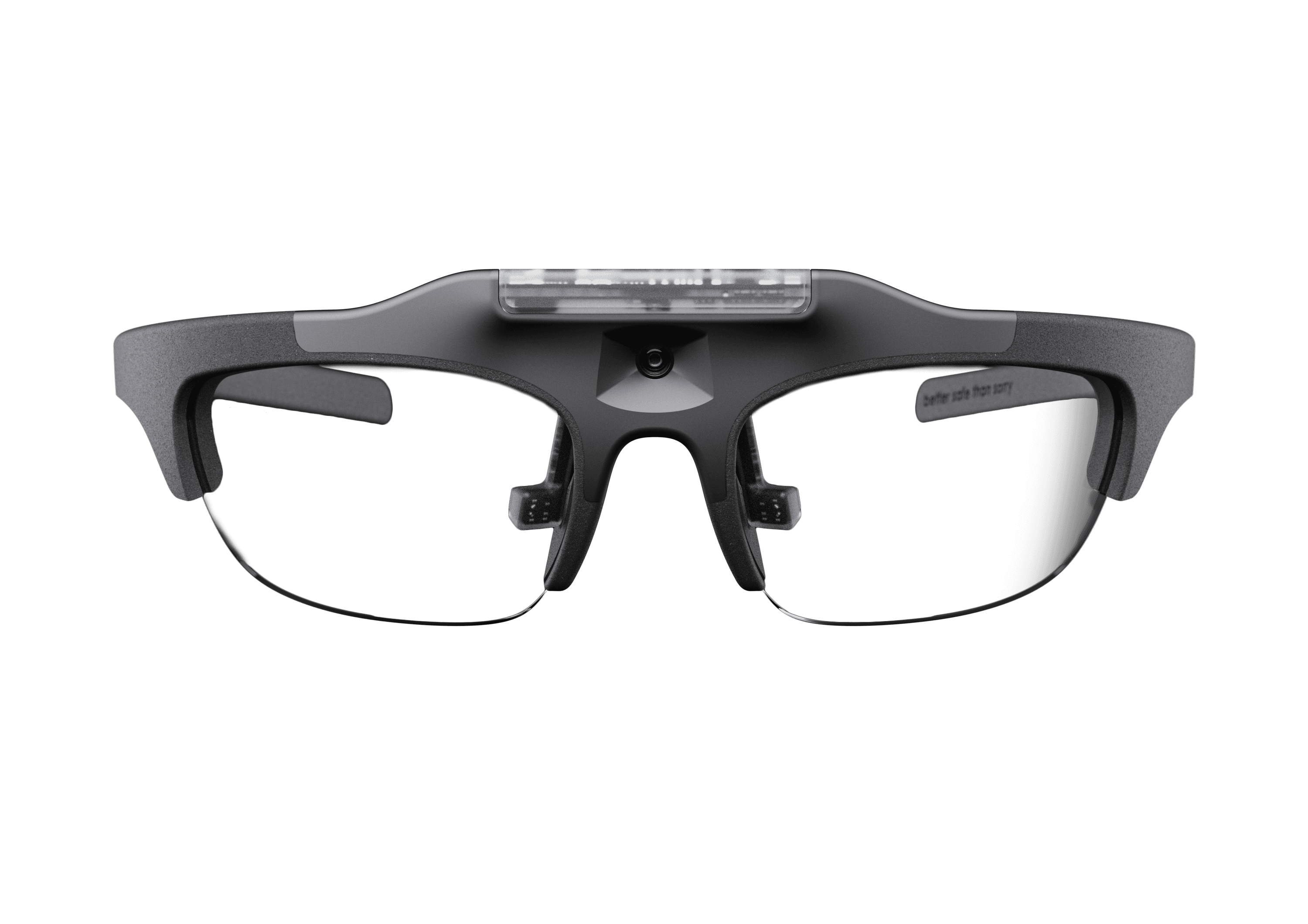

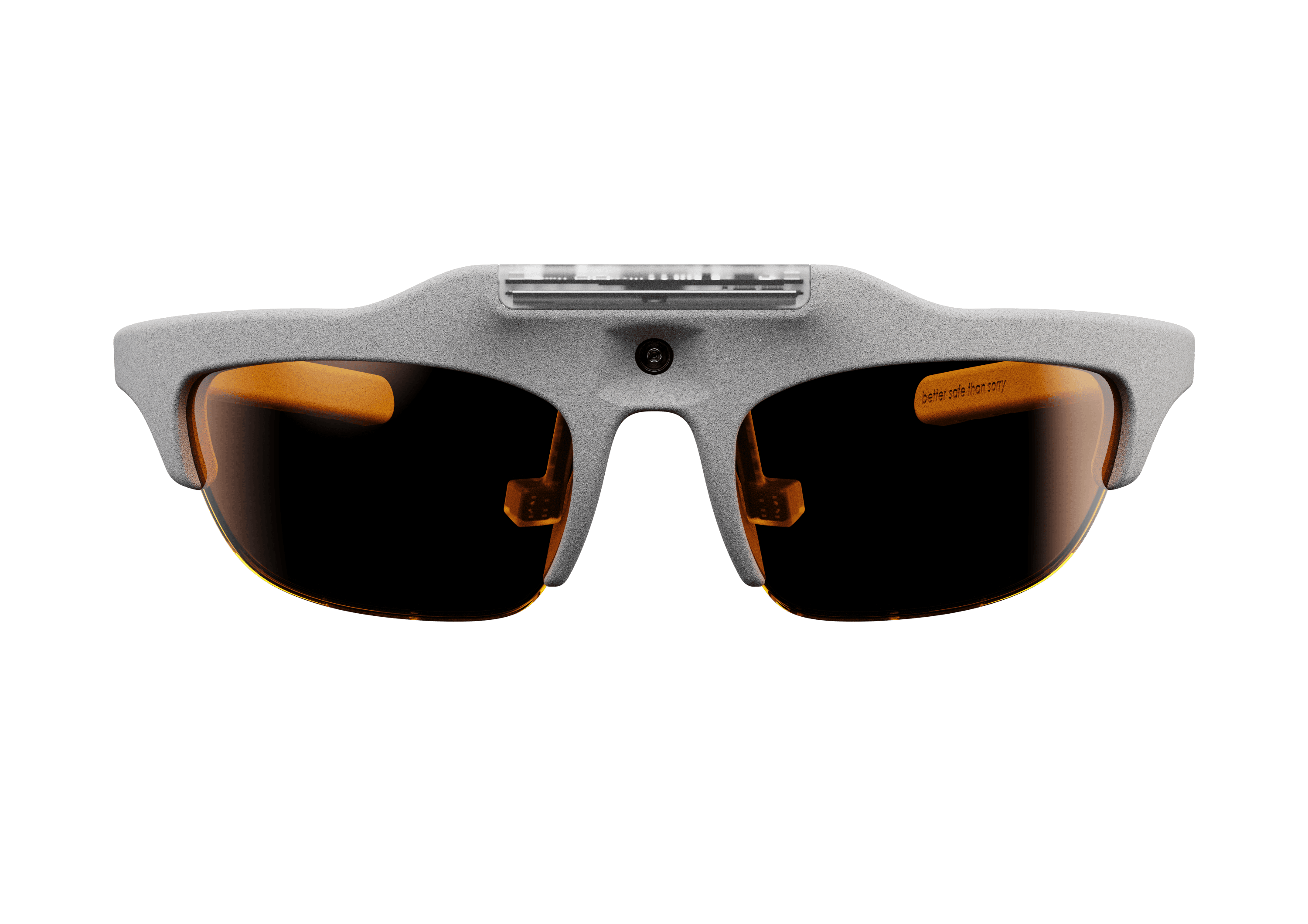

Better safe than sorry
Dimensions
H46 x W152 x D135 x B21 mm
Weight
45 g (including Neon module)
Material
PA12 Nylon, CNC machined anodized aluminum
Dimensions
LH34 x LW52 mm
Material
Plano CR-39 Anti-Scratch UV filter, Anti-Reflective, Dust and water repelling coating
Better safe than sorry
Notes
Frame Properties
Dimensions
H46 x W152 x D135 x B21 mm
Weight
45 g (including Neon module)
Material
PA12 Nylon, CNC machined anodized aluminum
Dimensions
LH34 x LW52 mm
Lens Properties
Material
Plano CR-39 Anti-Scratch UV filter, Anti-Reflective, Dust and water repelling coating
Better safe than sorry
Dimensions
H46 x W152 x D135 x B21 mm
Weight
45 g (including Neon module)
Material
PA12 Nylon, CNC machined anodized aluminum
Dimensions
LH34 x LW52 mm
Material
Plano CR-39 Anti-Scratch UV filter, Anti-Reflective, Dust and water repelling coating

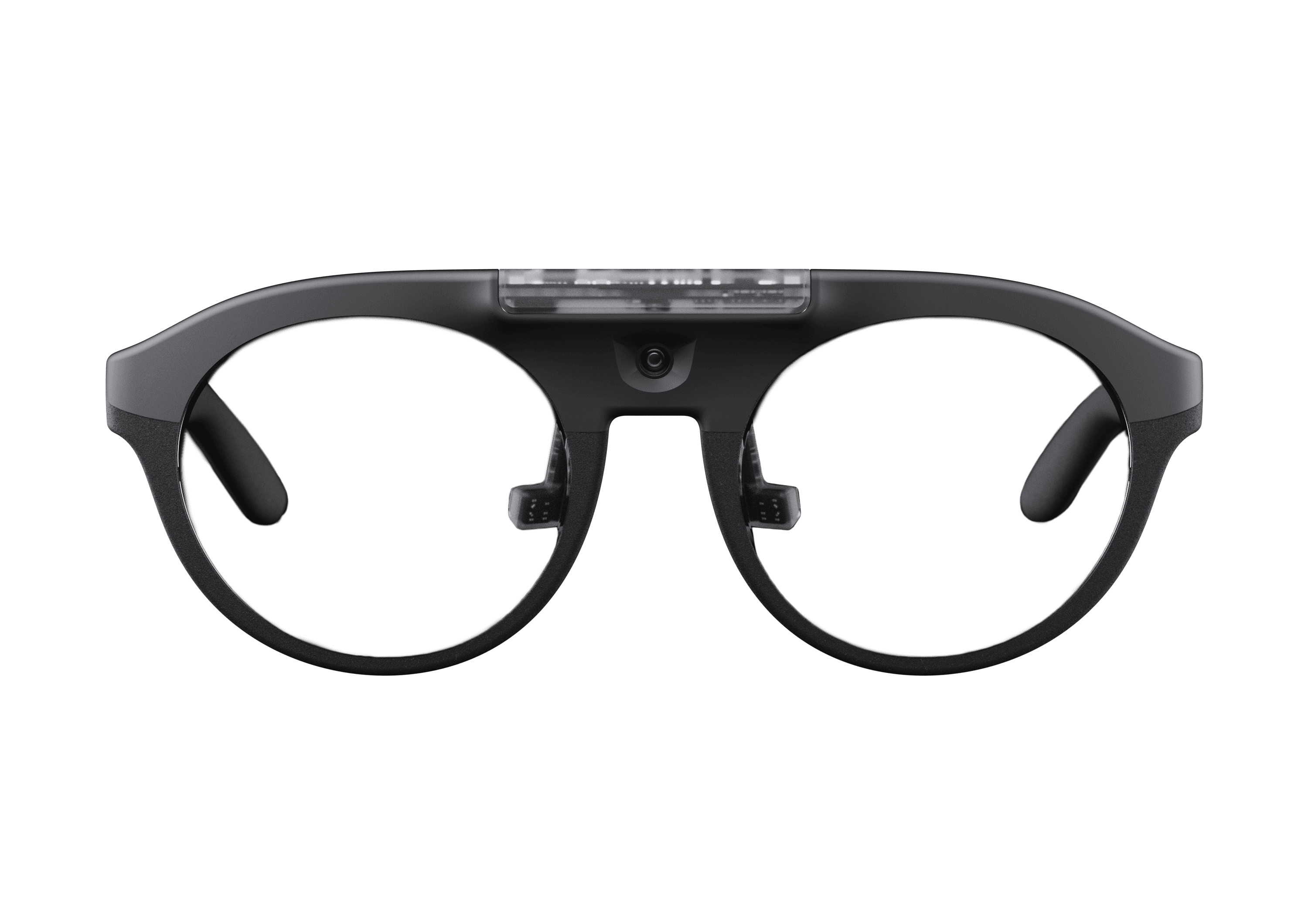

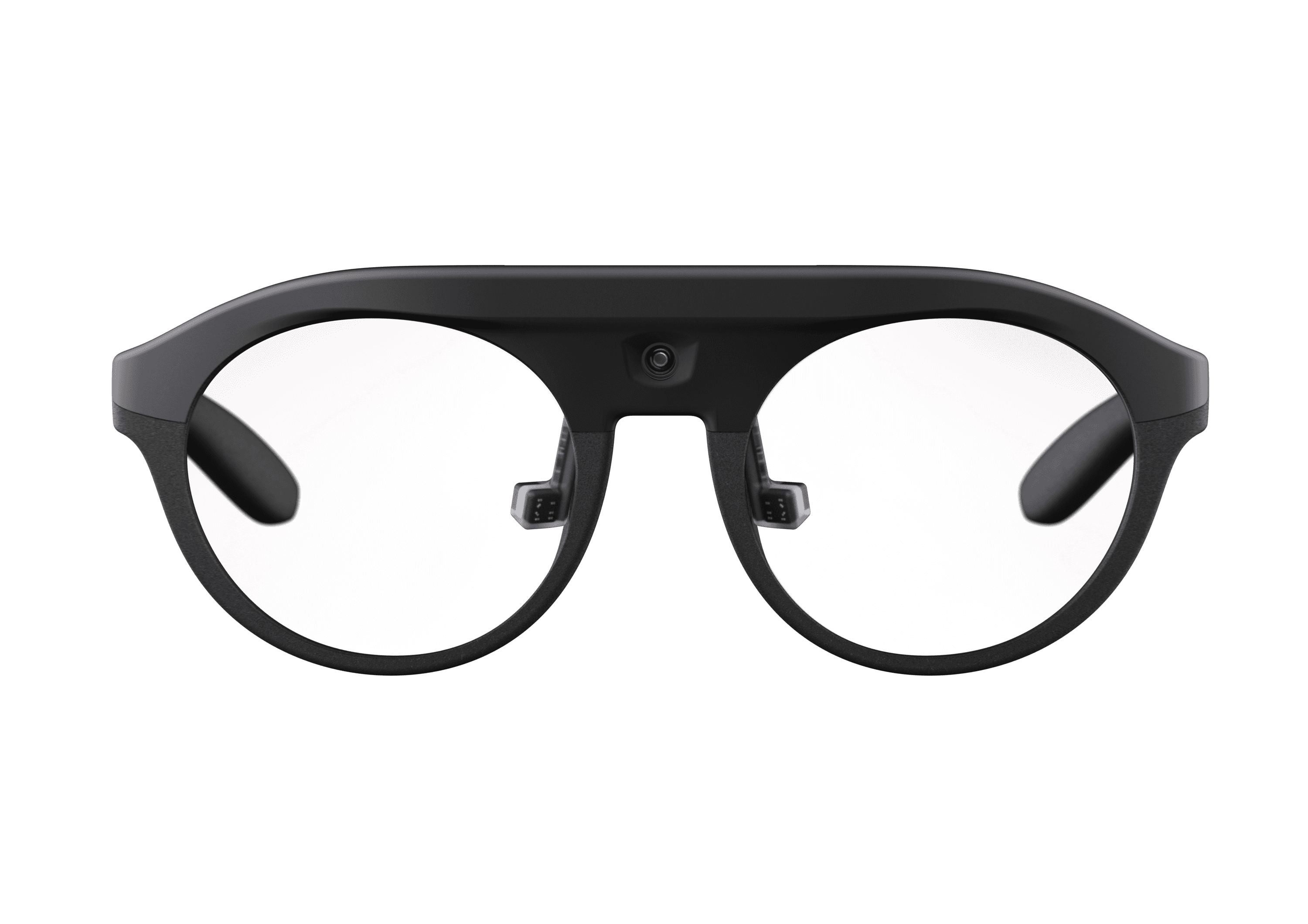

I can see clearly now
Dimensions
H54 x W143 x D135 x B21 mm
Weight
48 g (including Neon module)
Material
PA12 Nylon, CNC machined anodized aluminum
Dimensions
LH46 x LW52 mm
Material
CR-39 Anti-Scratch UV filter, Anti-Reflective, Dust and water repelling coating
Prescription lens kit included. -3 to +3 diopter in 0.5 steps.
I can see clearly now
Frame Properties
Dimensions
H54 x W143 x D135 x B21 mm
Weight
48 g (including Neon module)
Material
PA12 Nylon, CNC machined anodized aluminum
Dimensions
LH46 x LW52 mm
Lens Properties
Material
CR-39 Anti-Scratch UV filter, Anti-Reflective, Dust and water repelling coating
I can see clearly now
Dimensions
H54 x W143 x D135 x B21 mm
Weight
48 g (including Neon module)
Material
PA12 Nylon, CNC machined anodized aluminum
Dimensions
LH46 x LW52 mm
Material
CR-39 Anti-Scratch UV filter, Anti-Reflective, Dust and water repelling coating
Prescription lens kit included. -3 to +3 diopter in 0.5 steps.
Ready set go!
Dimensions
H41.5 x W155 x D145 x B21 mm / Max. circumference: 670 mm
Weight
30 g (including Neon module)
Material
PA12 Nylon, CNC machined anodized aluminum
N/A
Ready set go!
Frame Properties
Dimensions
H41.5 x W155 x D145 x B21 mm / Max. circumference: 670 mm
Weight
30 g (including Neon module)
Material
PA12 Nylon, CNC machined anodized aluminum
Ready set go!
Dimensions
H41.5 x W155 x D145 x B21 mm / Max. circumference: 670 mm
Weight
30 g (including Neon module)
Material
PA12 Nylon, CNC machined anodized aluminum
N/A

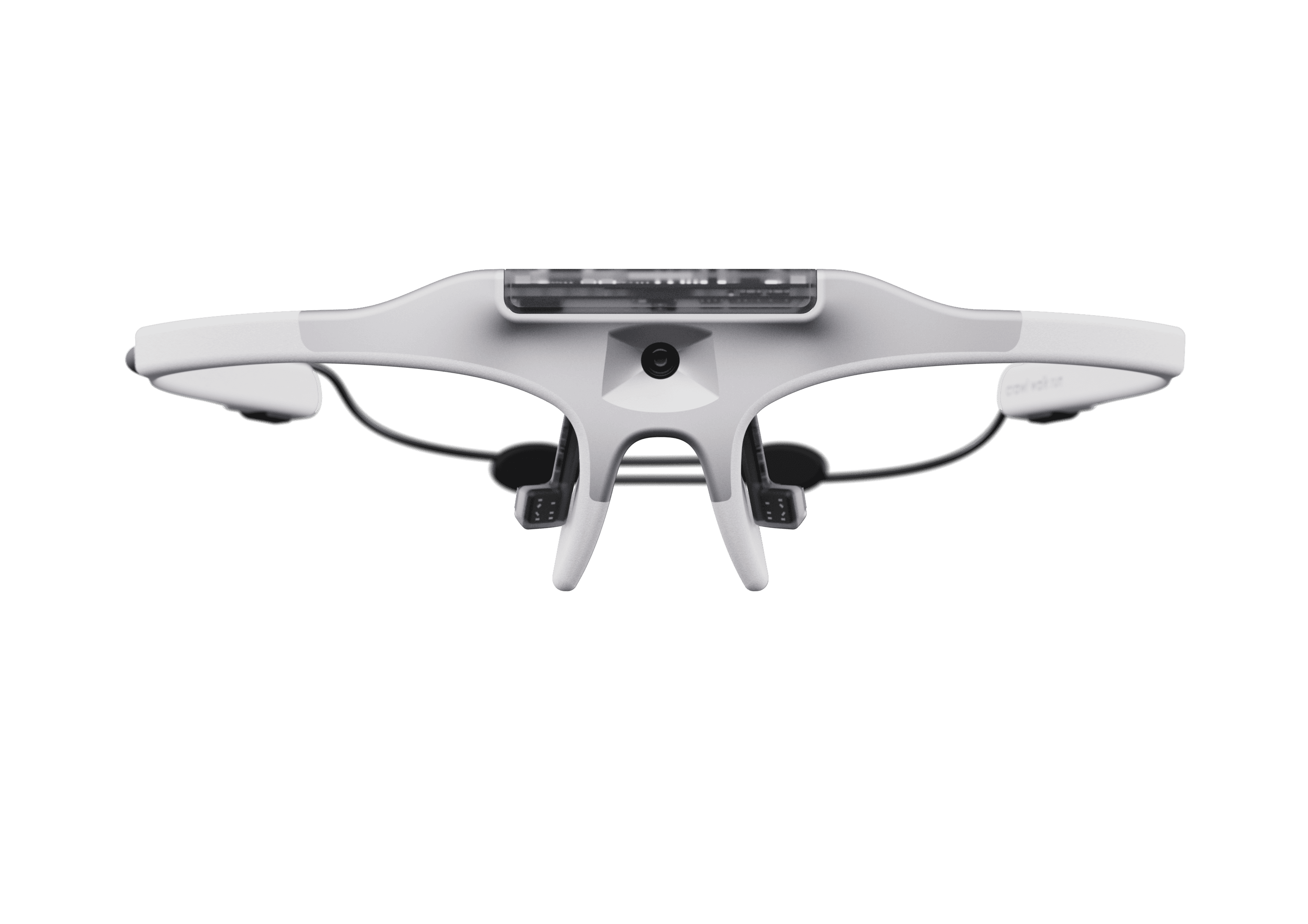

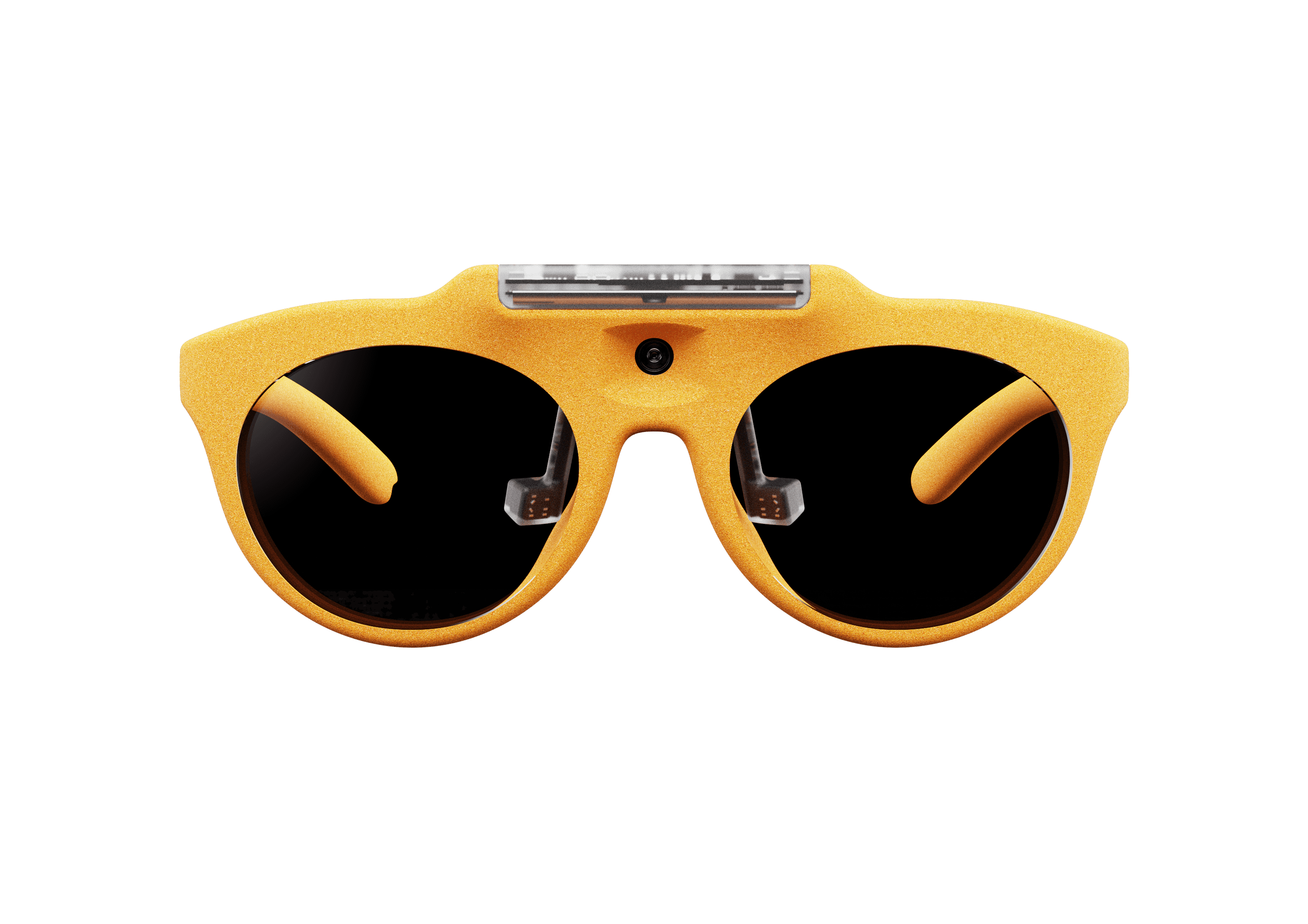

All fun and games
Dimensions
H49 x W124 x D128 x B19 mm
Weight
39 g (including Neon module)
Material
PA12 Nylon, CNC machined anodized aluminum
N/A
For Kids (Aged 2-8)
All fun and games
Notes
For Kids (Aged 2-8)
Frame Properties
Dimensions
H49 x W124 x D128 x B19 mm
Weight
39 g (including Neon module)
Material
PA12 Nylon, CNC machined anodized aluminum
All fun and games
Dimensions
H49 x W124 x D128 x B19 mm
Weight
39 g (including Neon module)
Material
PA12 Nylon, CNC machined anodized aluminum
N/A
For Kids (Aged 2-8)
Crawl walk run
Dimensions
H41 x W142 x D115 x B21 mm / Max. circumference: 585 mm
Weight
33 g (including Neon module)
Material
PA12 Nylon, CNC machined anodized aluminum
N/A
For Kids (Aged 2-8)
Crawl walk run
Frame Properties
Dimensions
H41 x W142 x D115 x B21 mm / Max. circumference: 585 mm
Weight
33 g (including Neon module)
Material
PA12 Nylon, CNC machined anodized aluminum
Crawl walk run
Dimensions
H41 x W142 x D115 x B21 mm / Max. circumference: 585 mm
Weight
33 g (including Neon module)
Material
PA12 Nylon, CNC machined anodized aluminum
N/A
For Kids (Aged 2-8)

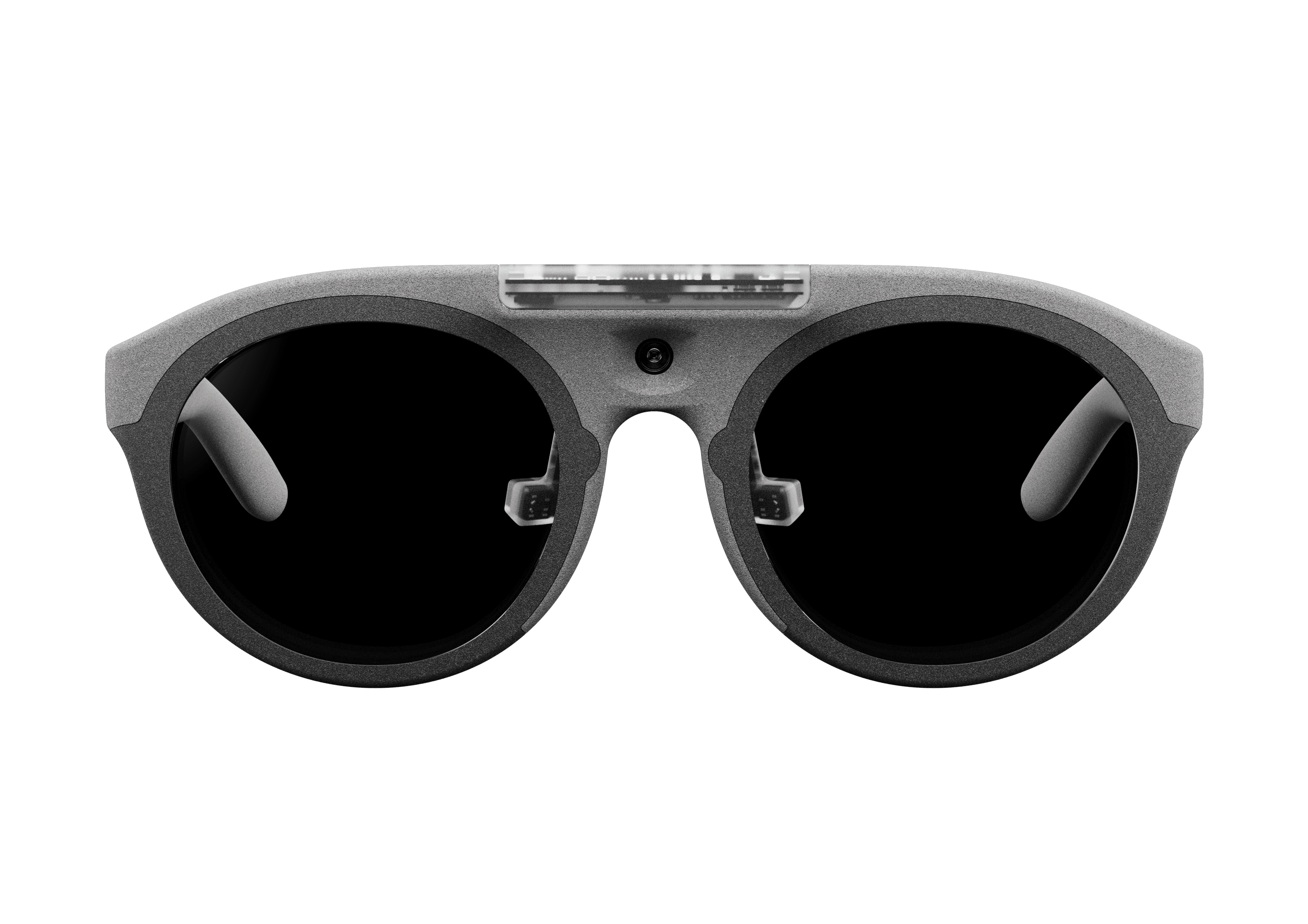

Nothing to see here
Dimensions
H52 x W143 x D149 x B21 mm
Weight
52 g (including Neon module)
Material
PA12 Nylon, CNC machined anodized aluminum
Dimensions
LH44 x LW51 mm
Material
Plano CR-39 Anti-Scratch UV filter, Anti-Reflective, Dust and water repelling coating
Nothing to see here
Frame Properties
Dimensions
H52 x W143 x D149 x B21 mm
Weight
52 g (including Neon module)
Material
PA12 Nylon, CNC machined anodized aluminum
Dimensions
LH44 x LW51 mm
Lens Properties
Material
Plano CR-39 Anti-Scratch UV filter, Anti-Reflective, Dust and water repelling coating
Nothing to see here
Dimensions
H52 x W143 x D149 x B21 mm
Weight
52 g (including Neon module)
Material
PA12 Nylon, CNC machined anodized aluminum
Dimensions
LH44 x LW51 mm
Material
Plano CR-39 Anti-Scratch UV filter, Anti-Reflective, Dust and water repelling coating

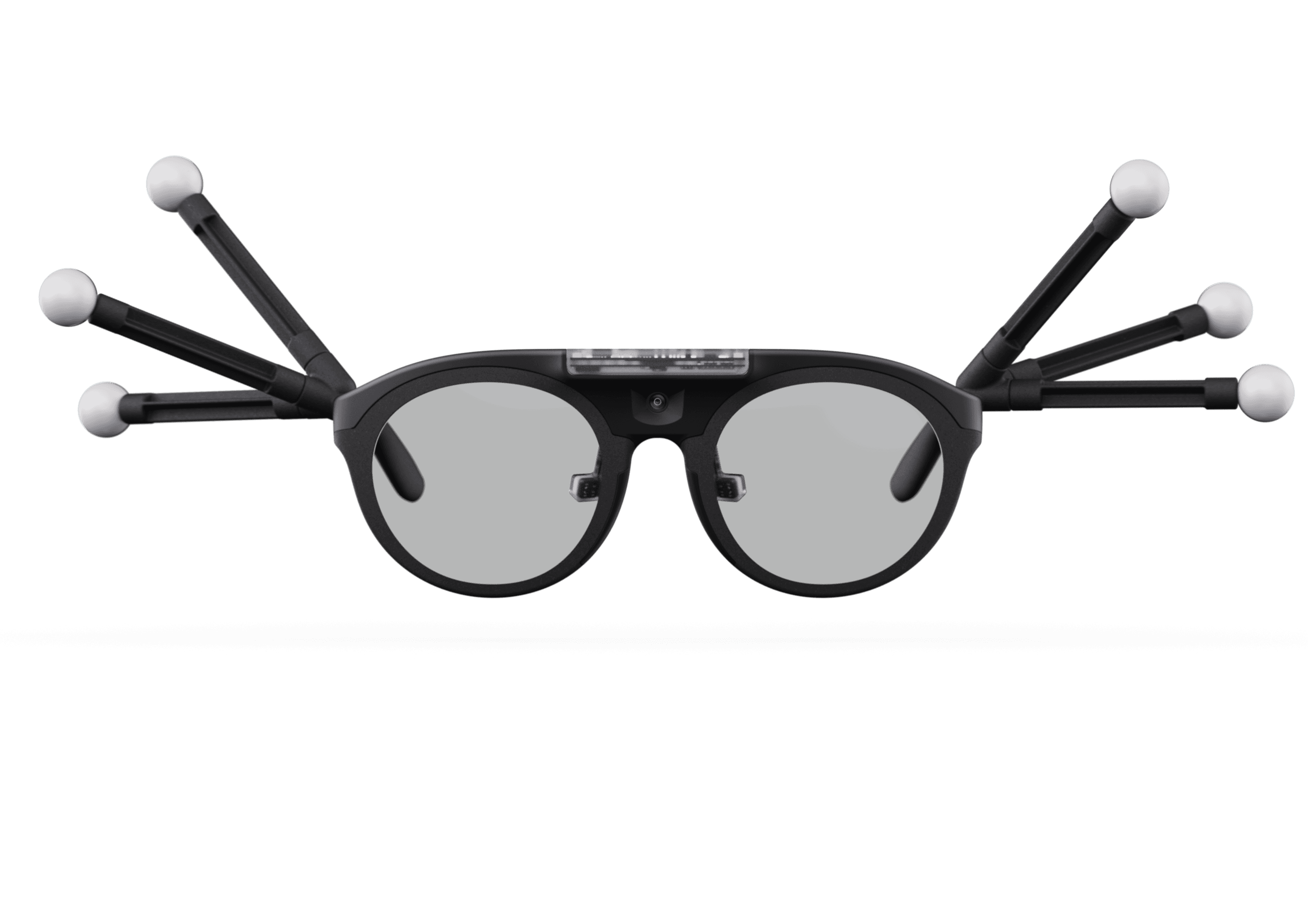

Every move you make
Dimensions
H46.5 x W152 x D148 x B21 mm / Max. circumference: 760 mm / Max. width: 330mm
Weight
40 g (including Neon module)
Material
Frame: PA12 Nylon, CNC machined anodized aluminum / Markers: 3M 7610 Reflective Tape and M3 Threads
N/A
Every move you make
Frame Properties
Dimensions
H46.5 x W152 x D148 x B21 mm / Max. circumference: 760 mm / Max. width: 330mm
Weight
40 g (including Neon module)
Material
Frame: PA12 Nylon, CNC machined anodized aluminum / Markers: 3M 7610 Reflective Tape and M3 Threads
Every move you make
Dimensions
H46.5 x W152 x D148 x B21 mm / Max. circumference: 760 mm / Max. width: 330mm
Weight
40 g (including Neon module)
Material
Frame: PA12 Nylon, CNC machined anodized aluminum / Markers: 3M 7610 Reflective Tape and M3 Threads
N/A
Bare metal
Dimensions
H35 x W40 x D10 mm
Weight
8 g (including Neon module)
N/A
Bare metal
Frame Properties
Dimensions
H35 x W40 x D10 mm
Weight
7.3 g
Bare metal
Dimensions
H35 x W40 x D10 mm
Weight
8 g (including Neon module)
N/A
